Capacitor, resistor, operational amplifier fault identification and troubleshooting guide
2024-04-15 14:12:50 82
Circuit boards have become an indispensable core component of all kinds of electronic products. However, even if the circuit board is well-designed and rigorously manufactured, the components on it will inevitably fail for various reasons. The direct understanding of the most prone to failure on the circuit board can not only help engineers improve the troubleshooting efficiency, but also provide targeted prevention and response strategies for product design, production and maintenance. Let's follow INFINITECH to see which components are prone to failure.
Capacitance fault
The failure caused by capacitor damage is the highest in electronic equipment, among which the damage of electrolytic capacitor is the most common. Capacitor damage is manifested as: smaller capacity, complete loss of capacity, leakage, short circuit.
The role of capacitors in the circuit is different, and the faults caused by them also have their own characteristics: in the industrial control circuit board, the digital circuit accounts for the vast majority, and the capacitors are mostly used for power supply filtering, and the capacitors are less used for signal coupling and oscillation circuits. If the electrolytic capacitor used in the switching power supply is damaged, the switching power supply may not vibrate, and there is no voltage output;
The output voltage filter is not good, the circuit is logical confusion due to voltage instability, which is manifested as good or bad when the machine works or can not open the machine, if the capacitor is between the positive and negative terminals of the power supply of the digital circuit, the fault performance is the same as above.
This is especially obvious on the computer motherboard, many computers with a few years appear sometimes can not open the machine, sometimes can turn on the phenomenon, open the chassis, often can see the phenomenon of electrolytic capacitor bulge, if the capacitor removed to measure the capacity, found that the actual value is much lower.
The life of the capacitor is directly related to the ambient temperature, and the higher the ambient temperature, the shorter the life of the capacitor. This law applies not only to electrolytic capacitors, but also to other capacitors. Therefore, when looking for the fault capacitor, it should focus on checking the capacitor close to the heat source, such as the capacitor near the heat sink and high-power components, the closer it is, the greater the possibility of damage. Therefore, it should be focused on the maintenance and search.
Some capacitors leak more seriously, and even hot hands when touched with fingers, this capacitor must be replaced. When the fault is good or bad during maintenance, excluding the possibility of poor contact, it is generally mostly caused by capacitor damage. Therefore, in the event of such a failure, focus on checking the capacitor, and the result after replacing the capacitor is surprising.

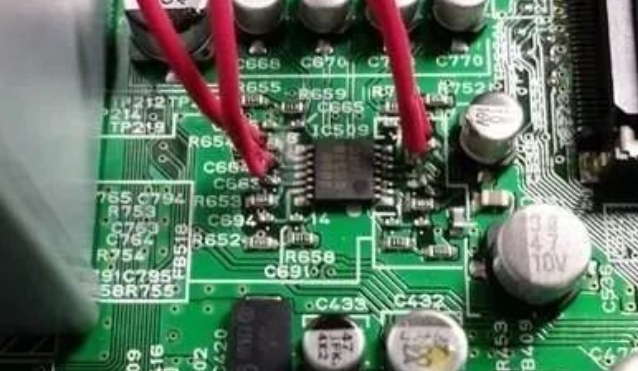

Resistance fault
Many beginners in the maintenance of the circuit, toss on the resistance, and disassemble and weld, repair much more, as long as you understand the damage characteristics of the resistance, you do not have to spend a lot of time.
Resistance is the most numerous component in electrical equipment, but it is not the component with the highest damage rate. Resistance damage is most common in open circuit, and it is rare for the resistance value to become large, and it is rare for the resistance value to become small. Common carbon film resistor, metal film resistor, wire wound resistor and safety resistor several.
The first two resistors are the most widely used, and their damage characteristics are: the damage rate of low resistance (below 100Ω) and high resistance (above 100 kω) is high, and the intermediate resistance (such as hundreds of euros to tens of thousands of euros) is rarely damaged; The second feature is that when a low resistance resistance is damaged, it is often burnt black and easy to find, while when a high resistance resistance is damaged, there are few traces.
Wire-wound resistance is generally used as a large current limiting, the resistance value is not large; When the cylindrical wire wound resistance burns out, some will be blackened or the surface explodes, cracks, and some have no traces; Cement resistance is a kind of wire wound resistance, which may break when burned out. When the safety resistor burns out, some surfaces will blow off a piece of skin, and some will not have any traces, but will never burn black. According to the above characteristics, you can focus on checking the resistance and quickly find out the damaged resistance.
According to the characteristics listed above, we can first observe the low resistance on the circuit board there is no trace of burning black, and then according to the resistance damage when the vast majority of open circuit or resistance value becomes larger and high resistance value resistance easy to damage characteristics, we can use a multimeter on the circuit board first directly measure the resistance value of the resistance at both ends of the high resistance value.
If the resistance value is larger than the nominal resistance value, then the resistance must be damaged (pay attention to the resistance value is stable before concluding, because there is a possibility of parallel capacitive elements in the circuit, there is a charge-discharge process), if the resistance value is smaller than the nominal resistance value, then generally ignore it. In this way, every resistance on the circuit board is measured again, even if the "wrong kill" one thousand, it will not miss one.
Operational amplifier fault
The judgment of operational amplifier is good or bad for quite a lot of electronic maintainers have a certain difficulty, here and we discuss together, I hope to help you.
Ideal operational amplifiers have the characteristics of "virtual short" and "virtual break", which are very useful for analyzing linear operational amplifier circuits. In order to ensure linear operation, the op amp must work in a closed loop (negative feedback). Without negative feedback, the open-loop amplifier becomes a comparator. If you want to judge the quality of the device, it should first be clear whether the device is used as an amplifier or a comparator in the circuit.
According to the principle of the amplifier virtual short, that is, if the operational amplifier works normally, the same input and reverse input voltage must be equal, even if there is a difference is mv level, of course, in some high input impedance circuits, the internal resistance of the multimeter will have a little impact on the voltage test, but generally will not exceed 0.2V, if there is a difference of more than 0.5V, The amplifier is bound to fail.
If the device is used as a comparator, the same input and the reverse input are allowed to differ. If the same voltage is greater than the reverse voltage, the output voltage is close to the positive maximum; If the same voltage is < the reverse voltage, the output voltage is close to the maximum of 0V or negative (depending on the dual power supply or single power supply). If the voltage detected does not meet this rule, the device will be broken! So you don't have to use substitution, you don't have to remove the chip on the circuit board to determine whether the op amp is good or bad.
SMT component failure
Some patch components are very small, it is very inconvenient to test and repair with ordinary multimeter pen, one is easy to cause short circuit, and the other is inconvenient for the circuit board coated with insulation coating to contact the metal part of the component pin. Here I tell you a simple method that will bring a lot of convenience to the detection.
Take two of the smallest sewing needles and hold them close to the multimeter pen. Then take a thin copper wire from a multi-strand cable and tie the pen and needle together with the thin copper wire. In this way, there is no danger of short circuit when using a stylus with a small tip to measure those SMT components, and the tip can Pierce the insulation coating and go straight to the key parts, and there is no need to bother to scrape the film.
In circuit board maintenance, if the fault of short circuit of the public power supply is often large, because many devices share the same power supply, each device that uses this power supply is suspected of short circuit.
If there are not many components on the board, the short circuit point can be found by the way of "hoe earth"; If there are too many components, the "hoe earth" can not hoe the condition depends on luck. In this recommend a more effective method, using this method, often can quickly find the fault point:
To have a voltage and current adjustable power supply, voltage 0-30V, current 0-3A, this power supply is not expensive, about 300 yuan. Adjust the open circuit voltage to the device power supply voltage level, first set the current to the minimum, apply this voltage to the circuit power supply voltage point such as 5V and 0V terminals of the 74 series chip, depending on the degree of short circuit, slowly increase the current.
Touch the device by hand, when a device is obviously heated, this is often the damaged component, which can be removed for further measurement and confirmation. Of course, the operating voltage must not exceed the operating voltage of the device, and can not be reversed, otherwise it will burn other good devices.
Board fault
More and more boards are used in industrial control, and many boards are inserted into slots by goldfinger. Due to the harsh environment of the industrial site, the dusty, humid, corrosive gas environment is easy to make the board produce poor contact failure, many friends may solve the problem by replacing the board, but the cost of buying the board is very considerable, especially the board of some imported equipment.
In fact, you may wish to use an eraser to rub several times on the gold finger, clean up the dirt on the gold finger, and then try the machine, maybe it will solve the problem, the method is simple and practical.
Electrical fault
A variety of good and bad electrical failures from the probability of the size probably includes the following situations:
-
Poor contact: poor contact between the board and the slot, failure to pass when the cable is broken inside, bad contact between the wire plug and the wiring terminal, and virtual welding of components are all such;
-
Signal interference: for digital circuits, the fault will be presented under specific conditions, it is possible that the interference is too much to affect the control system to make it wrong, there are also changes in the parameters of individual components of the circuit board or the overall performance parameters, so that the anti-interference ability tends to the critical point of failure;
-
The thermal stability of components is not good: from a large number of maintenance practices, the first is the thermal stability of electrolytic capacitors is not good, followed by other capacitors, transistors, diodes, ics, resistors, etc.;
-
There is moisture on the circuit board, dust, etc. : moisture and dust will conduct electricity and have a resistance effect, and in the process of thermal expansion and contraction, the resistance value will change, the resistance value will have a parallel effect with other components, the effect is relatively strong when it will change the circuit parameters to make the fault occur;
-
Software is also one of the factors to consider: many parameters in the circuit are adjusted by software, and the margin of some parameters is adjusted too low in the critical range. When the operating condition of the machine is in line with the reason for the software to determine the fault, then the alarm will appear.
