Principle and selection of inductive proximity sensor

2024-10-21 16:56:11 986

catalogue

1. The working principle of inductive proximity sensor
2. Inductive proximity sensors can detect what types of materials
3. Difference between inductive proximity sensor and capacitive proximity sensor
4. Detection range of inductive proximity sensor
5. What are the advantages and disadvantages of inductive proximity sensors
6. What are the applications of inductive proximity sensors in industry
7. How to choose the right inductive proximity sensor

8. Inductive proximity sensor common faults and troubleshooting methods

9. Conclusion

Today, INFINITECH would like to talk about how inductive proximity sensors work and their wide range of applications in industry. This sensor is designed based on electromagnetic induction phenomenon, which can detect the presence of metal objects without contact, and plays an important role in many fields such as automation control, production line monitoring and safety protection.

电感式接近传感器

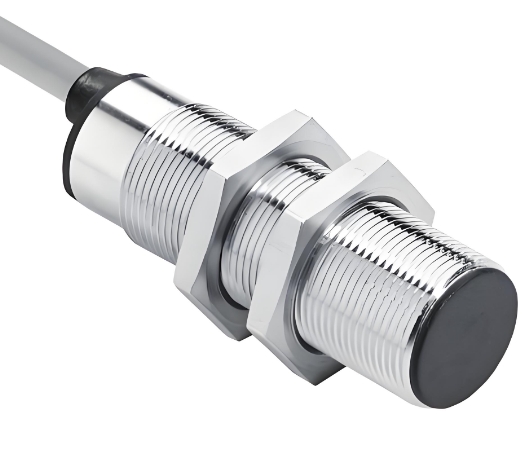

Figure 1: Inductive proximity sensor

Here, we will detail how inductive proximity sensors work, what types of materials they can detect, how they differ from capacitive sensors, as well as their advantages and disadvantages and practical application cases. We also share some tips on how to choose the right sensor and common troubleshooting tips. Hopefully, this information will help you better understand and utilize this important sensing technology.

1. The working principle of inductive proximity sensor

The working principle of inductive proximity sensors is based on electromagnetic induction phenomenon, which is mainly composed of a high-frequency oscillator, a detection coil (usually wound with copper wire) and a signal processing circuit. When no metal object is near, the oscillator generates a stable alternating magnetic field by driving an LC (inductor-capacitance) circuit. Once conductive or magnetic materials such as iron and steel enter this magnetic field range, they will produce eddy current effect under the action of alternating magnetic fields, that is, circulating current is formed in the metal body. The presence of such vortices causes additional energy loss and affects the resonant conditions of the oscillator, causing the amplitude of oscillation to weaken or even stop the oscillation.

电感式接近传感器的工作原理

Figure 2: How inductive proximity sensors work (from electroschematics)

As the oscillation state changes, the signal processing circuit connected to the oscillator is able to detect this change and convert it into an electrical output. This means that when a metal object approaches, the sensor will emit a switch signal or other form of indication signal, so as to achieve non-contact object detection. According to the specific application requirements, the trigger distance or sensitivity can be changed by adjusting the internal parameters of the sensor or the external Settings to adapt to different detection requirements. This method is not only suitable for the detection of static objects, but also can deal with dynamic objects well, and has been widely used in industrial automation control and other fields.

2. Inductive proximity sensors can detect what types of materials

Inductive proximity sensors are mainly used to detect metallic materials, including magnetic metals such as iron, nickel, cobalt and their alloys, which are very sensitive because they can significantly change the magnetic field generated by the sensor; It is also suitable for non-magnetic metals such as aluminum, copper, brass and some types of stainless steel (e.g. SUS304), but the detection distance for non-magnetic metals is usually shorter than that for magnetic metals. The sensitivity of different types of inductive proximity sensors to various metals varies, and the detection range is generally between 0.8 mm and 30 mm, and the specific application needs and the material and size of the object to be measured should be considered when selecting the appropriate sensor. It is worth noting that such sensors cannot directly detect non-conductive materials, such as plastic, wood or glass, because these materials do not significantly affect the alternating magnetic field generated by the sensor, and other types of sensors may be required for the detection of non-metallic materials, such as capacitive proximity sensors.

3. Difference between inductive proximity sensor and capacitive proximity sensor

Inductive proximity sensor and capacitive proximity sensor are both non-contact detection devices, but their working principles are different. In contrast, capacitive proximity sensors use changes in capacitance to detect objects. A capacitor is formed between it and the target, and when an object approaches, the effective dielectric constant or area of the capacitor is changed, which causes the capacitance value to change. This change is processed by an electronic circuit and converted into a switching signal or other form of output. Capacitive proximity sensors are capable of detecting not only metals, but also anything that can change the properties of an electric field, including plastics, wood, liquids, and even powdery substances. Therefore, it is very useful in applications where multiple materials need to be distinguished, especially in areas such as liquid level measurement, filling control in food processing, and so on.

电容式接近传感器的工作原理

Figure 3: How a capacitive proximity sensor works

The type of proximity sensor chosen depends on the requirements of the specific application. Inductive proximity sensors are suitable for applications mainly aimed at metal materials, and perform well in harsh environments; Capacitive proximity sensors are suitable for a wider range of material types, especially non-metallic materials. In addition, while both can adjust their sensitivity to suit different application needs, capacitive sensors may be more susceptible to surrounding media, such as water vapor. Therefore, factors such as the nature of the object to be measured, the required accuracy and the working environment conditions should be considered in the selection.

4. Detection range of inductive proximity sensor

The detection range of inductive proximity sensors is usually between a few millimeters and tens of millimeters, depending on the design and model of the sensor and the material of the object being measured. In general, for standard inductive proximity sensors, the nominal detection distance (that is, the rated working distance) can range from a few millimeters to about 30 millimeters. For example, some models of inductive proximity sensors may have a detection range of 5 mm, 8 mm, or 20 mm.

5. What are the advantages and disadvantages of inductive proximity sensors

Understanding the advantages and disadvantages of inductive proximity sensors is helpful for correct selection.

advantage

Non-contact inspection: No direct contact with the object under test is required, reducing the risk of wear and damage.

High reliability: Since there are no mechanical moving parts, it has a long service life and high reliability.

Fast response: Short response time, suitable for high-speed applications.

Environmental adaptability: able to work in harsh environments, such as dust, oil or wet environments.

Anti-interference ability: there is a certain resistance to electromagnetic interference, especially if it is designed with this in mind.

Easy to install: small size, easy to integrate into various equipment, easy to install.

Multi-purpose: can be used for the detection of a variety of metal materials, and can be adjusted to adapt to different application requirements.

shortcoming

Metal detection only: mainly applicable to the detection of metal materials, for non-conductive materials (such as plastic, wood) can not be effectively detected.

Limited detection range: The detection range is usually short, generally between a few millimeters and tens of millimeters, which limits its use in some applications that require remote detection.

Sensitivity is affected by material: Different types of metal (magnetic and non-magnetic) have different effects on the sensor, which can lead to changes in sensitivity and detection distance.

Cost issues: Inductive proximity sensors can cost more than some simple mechanical switches or other types of sensors.

Temperature sensitivity: In extreme temperature conditions, the performance of the sensor can be affected, although many modern sensors are temperature compensated.

Complex initial setup: For first-time users, setting up and calibrating the sensor properly may require some technical knowledge and experience.

6. What are the applications of inductive proximity sensors in industry

Production line control

Part count: On the assembly line or packaging line, the number of parts passed is counted.

Position detection: Ensure that the workpiece is correctly positioned on the machine, such as in a press or welding workstation.

电感式接近传感器应用于生产线加工

Figure 4: Inductive proximity sensors used in production line processing

Presence detection: Checks that a part is in place to trigger the next action.

Automation equipment

Robotic arms and robots: Help robots recognize and grasp objects for precise material handling.

Conveyor system: Monitor the movement of items on the conveyor belt for automatic sorting or stacking.

Quality control

Dimensional check: By measuring the position of metal parts to indirectly determine whether its size meets the standard.

Integrity verification: Check the product for missing parts, such as screws or caps.

Safety and protection

Emergency stop mechanism: When a person is detected entering a dangerous area, it can immediately stop to protect the safety of the operator.

Access control: for example, at the entrance to the clean room, ensuring that only authorized personnel have access.

Mechanical equipment monitoring

Condition monitoring: Track the speed and direction of rotating parts, such as gears, to help predict maintenance needs.

Terminal position detection: Confirm that the moving parts of the mechanical equipment have reached the predetermined position, such as the lifting limit of the crane hook.

Packaging industry

Filling level control: Used to monitor whether the container is full during liquid or particulate filling.

Seal check: Make sure the bag or bottle is properly sealed.

Automobile manufacturing industry

Body manufacturing: Used to accurately locate solder joints during body welding.

Engine assembly: Check the position and installation of engine components.

Logistics and warehousing

Cargo tracking: Used in warehouse management systems to track the movement of pallets or boxes.

Shelf management: Monitor the inventory level on the shelf and replenish the inventory in time.

Food processing

Hygiene monitoring: During the cleaning and disinfection process, ensure that all equipment is thoroughly cleaned.

Production process control: monitor the parameters in the food packaging process to ensure food safety.

aerospace

Aircraft assembly: During the assembly of aircraft and other aircraft, ensure that the components are accurately aligned.

Ground support equipment: for example, position adjustment when the boarding bridge meets the aircraft door.

7. How to choose the right inductive proximity sensor

Choosing the right inductive proximity sensor requires consideration of several factors to ensure that it can meet the needs of a specific application. Here are some key selection criteria and steps:

① Determine the detection distance

Rated operating distance: This refers to the maximum distance at which the sensor can reliably detect an object under ideal conditions (usually for detecting iron materials).

Adjustment in actual use: Considering that the material of the object to be measured may not be iron, the actual detection distance may be reduced. Manufacturers usually provide correction factors for different metal types.

② Consider the target material

Magnetic and non-magnetic metals: Determine whether you want to detect magnetic or non-magnetic metals, as this will directly affect the choice of sensor and its performance.

Material thickness: Thin metal sheets or small size components may require more sensitive sensors.

③ Working environment

Temperature range: Check whether the operating temperature range of the sensor is consistent with the application environment.

Protection level: Select an appropriate IP protection level based on whether contaminants such as dust and water vapor exist at the installation location.

Electromagnetic interference: If there is a strong electromagnetic field around, you should choose a model with better anti-interference ability.

④ Output type

Switching output: For simple yes/no detection.

Analog output: Suitable for applications that require continuous measurement of distance changes.

NPN/PNP compatibility: Ensure that the output type of the selected sensor matches the control system.

⑤ Response time and repetition accuracy

Response time: For high-speed moving targets, sensors with fast response times are needed.

Repeatability: Ensures the consistency and accuracy of the sensor when measuring the same position multiple times.

⑥ Installation method

Dimensions: Consider whether there is enough space for installation.

Connection mode: Cable length and connector type meet onsite requirements.

⑦ Economy

Cost-effectiveness: Compare the price to performance ratio of different brands and models, and choose products with high cost performance.

Maintenance and support: take into account the maintenance cost of long-term use and the technical support services provided by the supplier.

⑧ Other special requirements

Explosion-proof certification: If it is used in flammable and explosive environments, it is necessary to select products that have passed the corresponding safety certification.

Special functions: Functions such as self-learning and temperature compensation are required according to the specific application scenario.

By carefully evaluating the above factors and combining with the specific situation of the specific application, the most suitable inductive proximity sensor can be selected more accurately.

8. Inductive proximity sensor common faults and troubleshooting methods

Inductive proximity sensor will encounter some common faults during use. Understanding the causes of these failures and the corresponding troubleshooting methods can help solve the problem quickly and ensure the normal operation of the production line.

Here are some common faults and how to troubleshoot them:

No output signal

  • Cause: Power problem, wiring error, sensor damage or the target object is not in the detection range.

  • Elimination method:

    • Check whether the power supply voltage meets the requirements, and ensure that the power supply is correctly connected.

    • Check whether the cable is loose or disconnected.

    • Confirm whether the target object is within the effective detection range of the sensor.

    • If the above checks are normal, the sensor itself may be damaged and a new sensor needs to be replaced.

The output signal is unstable

  • Causes: environmental interference (such as electromagnetic interference), unstable movement of the target object, improper installation of the sensor or high sensitivity.

  • Elimination method:

    • Check whether there is a strong electromagnetic field or other interference sources and take shielding measures.

    • Ensure that the measured object is stable and at an appropriate distance from the sensor.

    • Check that the sensor is firmly installed and adjusted to the appropriate Angle and position.

    • Adjust the sensitivity setting of the sensor to suit the current application environment.

False triggering

  • Reasons: the sensor sensitivity is too high, environmental factors (such as temperature changes), other metal objects nearby interference.

电感式接近传感器的常见故障及排除方法

Figure 5: One of the common faults of inductive proximity sensors is false triggering

  • Elimination method:

    • Reduce the sensor sensitivity setting.

    • Check and optimize the working environment to avoid excessive temperature fluctuations.

    • Clean the metal debris around the sensor to ensure that no unnecessary metal objects affect the detection.

Response time is too long

  • Cause: Sensor aging, internal circuit problems, or improper load matching.

  • Elimination method:

    • Check the working status of the sensor. If the performance deteriorates significantly, you may need to replace the sensor.

    • Verify that the load matches the sensor output and add isolation circuits or use intermediate relays if necessary.

    • If the response is delayed due to a load problem, consider optimizing the load configuration.

Detection distance reduction

  • Cause: The sensor is dirty, the material of the target object changes, or the sensor is aging.

  • Elimination method:

    • Clean the sensor surface to remove impurities such as dust and oil.

    • Check whether the material of the target object has changed and adjust the sensor parameters to adapt to the new material.

    • If the sensor has been used for a long time and is aging, replace it with a new one.

Frequent failure

  • Cause: mechanical shock, overload use or poor environmental conditions.

  • Elimination method:

    • Re-evaluate the mounting position to ensure that the sensor is not subjected to direct mechanical impact.

    • Check electrical connections to ensure that no overload occurs.

    • Improve the working environment, such as adding shields or raising the level of protection.

Through regular maintenance and correct use methods, the failure rate of inductive proximity sensors can be greatly reduced. If you encounter problems that are difficult to solve, it is recommended to contact the technical support department of the supplier or manufacturer for help. In addition, a detailed record of the occurrence and handling process of each failure helps to better prevent and deal with similar problems in the future.

9. Conclusion

Inductive proximity sensors play a key role in industrial automation and various monitoring applications due to their non-contact detection, high reliability and fast response. Although it is mainly used for the detection of metal objects and has a limited range, it can meet the needs of a variety of complex environments through appropriate selection and Settings. Understanding how to properly select and maintain these sensors is critical to improving productivity and safety. I hope the above information can provide guidance and inspiration for your practical application.
