Guide to choosing the right color sensor
2024-09-29 14:15:17 434
Contents:
1. The working principle of color sensor
1.1 How does the color sensor work?
1.2 What is XYZ Color sensing technology?
1.3 How is RGB Measurement different from spectral measurement?
2. Type and selection of color sensor
2.1 What kinds of common color sensors are there?
2.2 How to choose the right color sensor?
3. What industries or scenarios can color sensors be used in
4. Common faults and solutions of color sensors
5. Conclusion

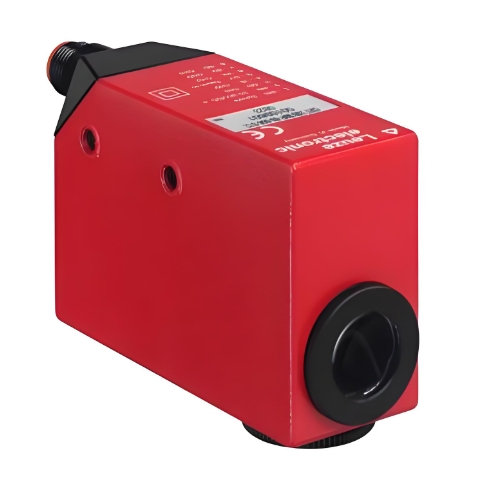

A color sensor is an electronic device that can detect and analyze the different color components of light. It determines the color of an object by measuring the ratio of the three basic color components red, green, and blue (RGB) in the incident light, and converts this information into an electrical signal or digital data output. This type of sensor usually contains a light source (such as an LED), sensitive elements (such as a photodiode or CMOS/CCD image sensor), and associated signal processing circuits.
1. The working principle of color sensor
How does the color sensor work?
Color sensors work based on sensitivity to specific wavelengths of light. The process usually begins with a built-in light source, such as an LED, that emits light onto the object under test. Depending on the color characteristics of the surface of the object, some of the light is absorbed while others are reflected or transmitted. This light then passes through the red, green, and blue (RGB) filters in the color sensor so that only light in the corresponding wavelength range can pass through. The filtered light reaches a photodiode or other type of photodetector, which converts the light signal into an electrical signal, thus achieving the conversion of color information to an electrical signal.
The converted electrical signal is then amplified and subjected to analog-to-digital conversion (A/D conversion) for further processing. The microprocessor or application specific integrated circuit (ASIC) is responsible for processing these digital signals, calculating the RGB value or directly output to a specific color coding format, such as HSV, CIELAB, etc. Finally, the color sensor outputs the analyzed color information in digital form and connects to an external system via a standard communication interface such as I²C, SPI or UART. This enables color sensors to play an important role in many fields, such as industrial automation, consumer electronics, medical equipment and scientific research, to achieve color recognition, matching and other functions.
What is XYZ Color Sensing technology?
XYZ color sensing technology is a color measurement method based on the CIE 1931 XYZ color space. The CIE 1931 XYZ color space is a standardized color model defined by the International Commission on Illumination (CIE) in 1931 that attempts to mathematically describe the perception of color by the human visual system. This color space uses the three virtual primary colors X, Y, and Z to represent colors in any visible spectrum, rather than based on actual physical colors such as red, green, and blue.
XYZ color space features
-
X, Y, Z three stimulus values: These three values represent the response of the human eye to different wavelengths of light. Each value is calculated by integrating the spectral energy under a specific weighting function over the entire visible spectral range.
-
Related to human perception: The design of the XYZ color space takes into account the changes in the sensitivity of the human eye to different wavelengths of light, in particular the action characteristics of the two types of light-sensitive cells in the retina - rod cells and cone cells.
-
Broad application basis: Many other color Spaces and color models are based on XYZ color space conversion or extension, such as sRGB, Adobe RGB, etc.
How XYZ color sensing technology works
-
Spectral response curve matching: To simulate the color perception of the human eye, the XYZ color sensor designs the response curve of its photodetector to be as close as possible to the standard observer curve defined by the CIE. This means that the sensor needs to be able to accurately capture and quantify the intensity of the incident light on the X, Y, and Z channels.
-
Multi-channel detection: Some advanced XYZ color sensors may employ multiple independent photodiode arrays, each equipped with filters optimized for X, Y, and Z color components, enabling efficient separation and measurement of different color components.
-
Signal processing and conversion: After appropriate amplification and analog-to-digital conversion of the collected data, the XYZ coordinate value is calculated through the built-in algorithm. These coordinates can be further converted into other commonly used color representations, such as RGB values, Lab* color Spaces, etc., for display or printing applications.
XYZ color sensing technology can provide more accurate simulation of human eye color perception, and has important application value in professional photography, printing industry, display calibration and scientific research.
How is RGB measurement different from spectral measurement?
RGB measurement is a tristimulus based method by using three sensors or color filters to measure the intensity of the red, green, and blue components of the incident light, respectively. These sensors are sensitive to light in a specific wavelength range and convert the detected light intensity into the corresponding electrical signal. This method is simple and relatively low cost, suitable for fast color recognition and comparison. However, depending on predefined standard light source conditions, performance may vary from light source to light source, and due to the characteristics of the filter used, it may not be possible to accurately capture all color details. Therefore, RGB measurement is widely used in areas such as consumer electronics and industrial automation, and is very useful when fast and approximate color matching is required.
In contrast, spectral measurements provide a complete spectral curve by making detailed measurements of reflectance or transmittance at various wavelengths across the entire visible spectral range. This curve details how objects interact with different wavelengths of light, providing detailed information about color. This method allows for more accurate color reproduction, especially in complex lighting conditions, but the equipment is usually more complex and costly. Spectral measurement is suitable for applications that require high color accuracy, such as scientific research, high-end printing, color management, and materials science, ensuring consistent and accurate color reproduction in a variety of lighting conditions.
In short, RGB measurement and spectral measurement have advantages and disadvantages, and are suitable for different application scenarios. RGB measurement has advantages in daily use because of its simplicity and quickness. Spectral measurement, with its comprehensive and accurate color data, plays an irreplaceable role in the professional field. Depending on the specific application requirements, budget constraints, and desired color accuracy, it is critical to choose the right technical solution. Sometimes, a combination of these two techniques can be used to achieve better results, such as using an RGB sensor in the preliminary screening stage, and then using a spectrometer for further detailed analysis of the selected sample. This can ensure efficiency while also meeting the needs of high precision.
2. Type and selection of color sensor
What are the common types of color sensors?
Understand the various types of color sensors, you can choose the right color sensor according to the specific application needs and the required accuracy, response time, cost budget and other factors.
Here are a few common color sensors:
RGB Color sensor:
Such sensors typically contain three photodiodes or a single photodiode array with red, green, and blue color filters.
They determine color by measuring the proportions of red, green, and blue in the light reflected by an object.
Suitable for applications that require basic color recognition, such as sorting, packaging and quality control.
XYZ Color sensor:
Based on CIE 1931 XYZ color space design, simulate the human eye's perception of color.
The use of specific color filters to match the X, Y, and Z tristimulus values can provide color information that is closer to the perception of the human eye.
Suitable for scenarios that require high-precision color matching and analysis, such as professional photography and printing.
Multi-channel spectral color sensor:
The ability to measure the intensity of light at multiple wavelengths (usually multiple narrow bands in the visible range).
Provides more detailed spectral data than RGB or XYZ sensors.
Ideal for scientific research, material analysis, and high-end color management applications.
Color difference sensor:
Designed to detect the difference between two colors.
By comparing the target color with the reference color to determine whether it is within the acceptable range.
Widely used in industrial production line product quality control.
NIR (Near Infrared) Color Sensor:
It can not only detect colors in the visible range, but also extend to the near infrared region.
Helps to distinguish certain substances that have a similar appearance but different chemical compositions.
It has important applications in food processing, drug production and agriculture.

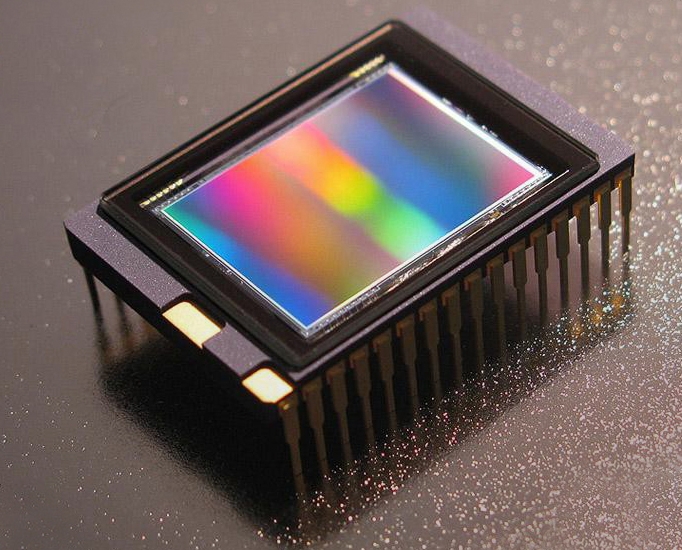

CMOS/CCD image sensor:
Although primarily used for imaging, color detection can also be implemented through processing algorithms.
Consists of a large number of pixels, each of which may be equipped with a tiny RGB color filter.
It is useful in machine vision systems and can be used for color recognition and tracking in complex scenes.
How to choose the right color sensor?
When selecting the right color sensor, several factors need to be considered to ensure that the selected sensor can meet the needs of the specific application.
Here are some key points to help you make the right choice:
① Application requirements
-
Be clear about the purpose of using the color sensor. Is it used for color recognition, color difference detection, quality control or other purposes?
-
Select the sensor type according to the accuracy requirements of the application for color measurement. For example, high-precision applications may be more suitable for XYZ or spectral color sensors.
-
If the application requires fast color detection (such as high-speed production lines), a sensor with a fast response should be selected.
② Light source condition
-
Know if the light source in the work environment is stable. Some sensors are sensitive to changes in the light source and may require additional calibration steps.
-
Determine whether it is natural light, LED, fluorescent, or another type of lighting. Different types of light sources can affect the performance of the sensor.
③ Environmental conditions
-
Check the performance of the sensor in the expected operating temperature range and humidity conditions.
-
For harsh environments, choose a sensor with the appropriate IP protection level to protect against dust and moisture.
④ Output signal and interface
-
Confirm the desired output signal format, such as analog voltage, digital signal (I²C, SPI, UART, etc.).
-
Some applications may require the sensor to have built-in data processing capabilities, such as color matching algorithms.
⑤ Power requirements
-
Determine the type of power supply (DC or AC) supported by the sensor and the rated voltage.
-
For battery-powered applications, low-power sensors are more suitable.
⑥ Dimensions and installation
-
Select the appropriate sensor size according to the limitations of mounting space.
-
Consider how the sensor is installed and whether it is easy to integrate into existing systems.
⑦ Cost effectiveness
-
Select cost-effective products according to the project budget.
-
Consider factors such as maintenance costs, possibility of replacement parts, etc.
⑧ Brand and technical support
-
Choosing a well-known brand of sensors usually leads to better product quality and after-sales service.
-
Confirm the level of technical support provided by the supplier, which is very important for subsequent commissioning and maintenance.
By taking these factors into account, you can more accurately determine which color sensor is best for your specific application.
3. What industries or scenarios can color sensors be used in
Because of its ability to accurately detect and analyze colors, color sensors have been widely used in many industries and application scenarios. Here are some of the main areas of use:
Industrial automation and manufacturing
-
Quality control: Used in the production line to check the color consistency of the product and ensure that the product meets the standard.
-
Sorting system: Automatically identifies products or materials of different colors and classifies them.
-
Packaging: Ensure that the color of the packaging is consistent with the brand requirements.
Printing and publishing
-
Color calibration: Ensure the color accuracy and consistency of printed matter.
-
Ink control: Monitor the quality and concentration of the ink and adjust it to obtain the best printing results.
Medical and health
-
Dermatological diagnosis: Analysis of skin color changes to assist in the diagnosis of skin diseases.
-
Blood analysis: Used for color analysis of blood samples to help determine parameters such as hemoglobin levels.
-
Dentistry: Color matching when teeth are whitened and repaired.
Food processing
-
Quality control: The color of food is tested to ensure freshness and ripeness.
-
Food safety: Color changes are used to detect whether food is contaminated or spoiled.
agriculture
-
Crop monitoring: Use color sensors on drones or ground vehicles to monitor crop growth conditions, such as changes in chlorophyll content.
-
Fruit grading: Grading fruits according to color to increase market value.
Consumer electronics
-
Monitor calibration: Ensure that the color output of the display is accurate.
-
Smart lighting: Adjust the color temperature of the light to create a different atmosphere.
Safety and security
-
Flame detection: Some advanced fire alarm systems utilize color sensors to identify the specific color characteristics of the flame.
-
Traffic management: Used in intelligent transportation systems for vehicle color recognition, aid in license plate recognition and other safety functions.
Scientific research
-
Environmental monitoring: For color change monitoring in water quality, air quality and soil analysis.
-
Materials science: The study of the color change properties of new materials under different conditions.
Art and design
-
Color matching: Helps artists and designers accurately mix pigment colors.
-
Conservation: Monitoring of color changes in artwork or monuments so that conservation measures can be taken.
Fashion and textiles
-
Fabric testing: Ensure that the fabric is dyed evenly and meets the design specifications.
-
Clothing production: Maintain color consistency in the clothing manufacturing process.
4. Common faults and solutions of color sensors
Understanding the common failure factors that color sensors may encounter during use can help us effectively diagnose problems and take measures to avoid these failures in advance, thus ensuring stable performance and accurate measurement of color sensors. So what are the common failures of color sensors? Let's take a look:
I. Inaccurate or unstable readings
-
Causes: light source changes, ambient light interference, sensor surface dirt, color filter aging or damage.
-
The solution:
-
Ensure stable lighting conditions and avoid direct exposure to external light.
-
Clean the sensor surface regularly to remove dust and dirt.
-
Inspect and replace aging filters or damaged optics.
-
Recalibrate the sensor.
-
Ii. No signal output
-
Cause: Power supply problem, loose or damaged connection line, internal circuit failure.
-
The solution:
-
Check that the power supply is normal and that the voltage meets the requirements of the sensor.
-
Check all connections to make sure they are securely connected and not damaged.
-
If an internal circuit problem is suspected, contact the manufacturer for repair or replacement.
-
Iii. Long response time
-
Cause: The sensor is improperly configured, the hardware is aging, and the software driver is faulty.
-
The solution:
-
Adjust the sensor's sample rate and response time Settings.
-
Check for firmware updates available and upgrade.
-
If the hardware is badly aged, consider replacing it with a new sensor.
-
Iv. Color recognition error
-
Reasons: Calibration data loss or error, sensor sensitivity loss, algorithm problems.
-
The solution:
-
The complete calibration process is re-performed to ensure that the correct standard swatches are used.
-
Check the sensor sensitivity Settings and adjust them as needed.
-
Update or optimize the color recognition algorithm.
-
V. Temperature effect
-
Cause: Ambient temperature changes cause sensor performance fluctuations.
-
The solution:
-
Try to install the sensor in a relatively constant temperature environment.
-
Use a sensor model with temperature compensation.
-
Check and calibrate sensors regularly under extreme temperature conditions.
-
Vi. Mechanical damage
-
Cause: The sensor is damaged due to physical shock, vibration or improper operation.
-
The solution:
-
Avoid unnecessary external force on the sensor.
-
In the environment with vibration, take appropriate shock absorption measures.
-
If the sensor has been damaged, assess whether it can be repaired; If it cannot be repaired, it needs to be replaced.
-
Maintenance suggestion
-
The sensor is cleaned and inspected regularly to maintain its optimum performance.
-
Minimize the impact of environmental factors (such as dust, humidity, temperature) on the sensor.
-
Properly install and configure the sensor according to the manufacturer's instruction manual.
-
For critical applications, have a backup sensor ready for quick replacement if the primary sensor fails.
5. Conclusion
As a key electronic device, color sensor plays an important role in many fields of modern society. By accurately detecting and analyzing the color of objects, they not only improve the efficiency of product quality control, but also show unique value in scientific research, healthcare, food processing, and art design. In the above, INFINITECH explains in detail the working principle of color sensors and their different types of technical features, including the difference between RGB measurement and spectral measurement, and the advantages of XYZ color sensing technology in simulating the human eye's color perception. In addition, we introduce the key factors to consider when choosing the right color sensor for a specific application, and list some common failures and corresponding solutions. I hope the above content will be helpful to you. If you have any other questions, please leave a message to INFINITECH.
