Type, application and selection guide of optical fiber connectors

2024-08-14 14:10:58 1408

As an integral part of modern communications and data transmission, fiber optic connectors play a vital role in ensuring efficient and stable transmission of optical signals. They not only support high-speed data transmission, but also maintain signal integrity and stability over long distances, which is critical for telecommunications networks, data centers, and other applications that require high-performance communications.

The design and manufacturing process of fiber optic connectors is very fine, ensuring low loss and high efficiency when the optical signal is transmitted between different fibers. Through precise alignment mechanisms and high-quality material use, fiber optic connectors provide reliable service in a variety of application scenarios. In addition, they also have the ability to resist electromagnetic interference and maintain signal purity in complex electromagnetic environments, which is extremely important to ensure communication quality and data security.

1. What is an optical fiber connector?

An optical fiber connector is a device used to connect two optical fibers or cables so that optical signals can be transmitted from one fiber to the other. Its main components include an adapter, a pin/sleeve, and a housing. The role of the adapter is to align and hold the two connectors together to ensure that the optical signal can be smoothly transmitted from one fiber to the other. The pin/sleeve is the core part of the connector and is responsible for holding the optical fiber in place and ensuring accurate alignment between the optical fiber ends for efficient data transmission. The housing protects the internal components and ensures that the connector works stably in a variety of environments. These components work together to enable fiber optic connectors to provide reliable connectivity in a variety of application scenarios, including telecommunications networks, data centers, and computer networks.

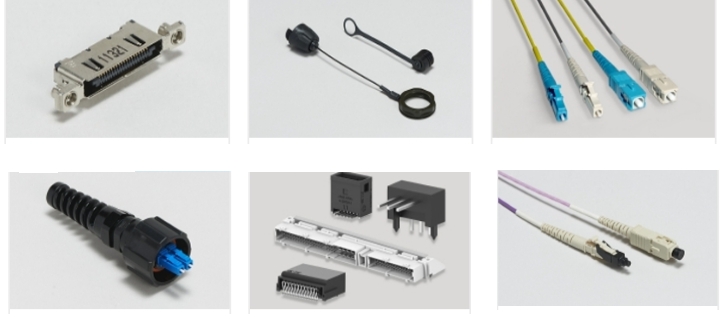

什么是光纤连接器Image credit: TE

2. What is the working principle of the optical fiber connector?

The working principle of the fiber optic connector is based on precise optical alignment and stable mechanical connection. When the two fibers are inserted into the connector, the internal alignment sleeve helps align the positions of the two fibers, ensuring that they can be precisely aligned. The end face of the fiber is finely ground and sometimes even formed into a sphere rather than a plane to promote the contact between the center of the fiber and reduce the loss of the optical signal during transmission. In order to ensure the close contact and good coupling effect between the two optical fibers, the connector pins are usually made of ceramic materials and have extremely high accuracy. In addition, the connector exerts a certain pressure through the spring, so that the spherical end face of the pin is slightly deformed, thus ensuring the close contact of the two optical fiber end faces. This design ensures that optical signals can be transmitted efficiently and with low loss from one fiber to another, which is critical to the reliability and performance of fiber optic communication systems.

3. What are the main types of optical fiber connectors?

Subscriber Connector (SC connector) : The SC connector is a plug-in connector for convenient connection. The service life can reach more than 1000 times. It is common in 100Base-FX networks. Suitable for single mode or multi-mode fiber. The housing is rectangular in design for high-density installation.

Ferrule Connector (FC Connector) : Adopts the threaded connection mode, and the connection is firm and reliable. High tensile strength, suitable for applications requiring high reliability. Can be used for single mode or multi-mode fiber. It was initially developed by NTT Corporation of Japan.

ST connector (Straight Tip) : The plug-in connection is simple and fast. Suitable for multi-mode fiber connection. Round design, fixed with clasps. It is usually used on 10Base-F networks.

LC Connector (Lucent Connector) : compact design, using plug-in connection mode. Suitable for high-density fiber connections. Easy to plug and pull, small footprint. Suitable for high-speed data transmission. Common in data centers and telecommunications rooms.

Multi-Fiber Push On/Multi-Fiber Terminal Plug (MPO/MTP) : A multi-core optical fiber connector that is connected in plug-in mode. Ideal for high-speed fiber optic communications and data center applications. Supports the connection of multiple Fibre channels. Attention needs to be paid to polarity issues and the correct configuration of connectors.

光纤连接器的类型大全In addition to the above common types, there are some other fiber optic connector types:

  • D4 connector: Early single-mode fiber optic connector.

  • DIN Connector: European standard fiber optic connector.

  • Biconic connectors: Designed with biconical pins.

  • MU connector: Miniature version of SC connector.

  • MT Connector: A form of multi-core fiber optic connector.

  • VSFF connector (Very Small Form Factor) : ultra-small optical fiber connectors, including SN, MBC, and CS connectors.

4. What aspects are fiber optic connectors widely used in?

光纤连接器的作用与应用

Image credit: molex

It is used to connect optical fiber lines in long-distance communication networks to ensure high-quality data transmission.

Provide reliable fiber optic connectivity in mobile base stations and core network facilities.

Used as a terminal connector in Fiber to the Home (FTTH) and Fiber to the Building (FTTB) deployments.

In the data center, it is used for high-speed interconnection between servers, storage devices and other network infrastructure. Support for high density cabling solutions to accommodate growing data traffic demands.

Provides high-speed data transmission capabilities in local area networks (LAN) and wide area networks (WAN). Used to build high-performance enterprise network architectures.

It is used in high-definition video transmission, audio signal transmission, and broadcast television networks. For professional grade audio and video production and distribution systems.

Used for high-speed data links in aircraft, satellites and other aircraft. Provide secure and reliable connections in military communication systems.

Used as a data transmission medium in endoscopes, laser surgery and other medical devices in medical technology. For medical imaging and telemedicine services.

Transmitting data in large scientific experiment facilities such as astronomical telescopes and particle accelerators. High speed data exchange and acquisition system for laboratory.

Used to connect sensors and actuators in factory automation control systems.

Used in robotics to transmit control signals and data.

As a connection point in the submarine cable system, it supports the trans-oceanic communication network. It is used for data transmission of deep sea exploration and underwater monitoring equipment.

Provides data transmission in traffic monitoring and signal control systems. For communication between vehicles and vehicle networking technology.

5. How to select an appropriate optical fiber connector?

Before choosing a fiber optic connector, determine which specific application the connector will be used for, such as data centers, telecommunications networks, enterprise networks, or industrial automation. Consider whether the connector is suitable for indoor or outdoor use.

Depending on the application, determine whether to use single-mode fiber or multi-mode fiber. Single-mode fiber is suitable for long-distance transmission, while multi-mode fiber is suitable for shorter distances or local area networks.

Choose the type of connector that suits your application, such as SC, LC, FC, ST, or MPO/MTP. Consider factors such as the size of the connector, ease of use, and the number of insertions.

Ensure connectors comply with relevant industry standards such as IEC, TIA/EIA, etc. Check connector performance indicators such as insertion loss, return loss, and interchangeability.

Select the connector shape that suits your device, such as a circle, rectangle, or other specific shape. Consider the locking mechanism of the connector, such as snap, threaded, or push-in.

Consider whether the connector can withstand factors such as temperature changes, humidity, dust or corrosion in the application environment. If you need to use in harsh environments, you should choose a connector with a protection level.

Balance performance and cost, and choose cost-effective connectors. Consider the overall life cycle cost of the connector, including installation, maintenance, and replacement costs.

Choose reputable and experienced manufacturers and suppliers. Consider the supplier's technical support capability and after-sales service quality.

Ensure that the selected connector is compatible with existing systems and equipment. Consider the degree of standardization of connectors to ensure flexibility for future expansion and replacement.

If there are special requirements, such as dust and water resistance, high temperature resistance or specific cable types, they should be considered in advance.

6. How to install the optical fiber connector?

a. Preparation phase

Tools required:

Optical fiber stripper: Used to remove the outer sheath of optical fibers.

Optical fiber cutting knife: used to cut optical fiber ends.

Cleaning tools: such as cotton swabs, isopropyl alcohol or special detergent.

Fiber test equipment: such as light source and optical power meter, used to test the fiber signal quality after connection.

Optical fiber preparation:

Use an optical fiber stripper to remove the outer sheath of the optical fiber. The length depends on the connector requirements.

Use an optical fiber cutting knife to accurately cut the optical fiber end face, ensuring that the end face is smooth and non-destructive.

Clean:

Use a cotton swab and isopropyl alcohol to carefully clean the optical fiber end face and ensure that no dust or oil remains.

b. Installation phase

Fiber insertion:

Insert the fiber into the adapter or sleeve of the connector.

For some types of connectors, special tools may be required to complete this process.

光纤连接器如何安装

Fixed fiber:

Use a heat shrink tube or adhesive to secure the optical fiber in the connector.

For some connectors, the fiber may need to be mechanically secured.

Polish the fiber end face (if applicable) :

For some connectors, it may be necessary to use a sanding tool to further polish the fiber end face to ensure a smooth surface.

Test:

Test the quality of the fiber connection using a light source and an optical power meter.

Measure insertion loss and return loss to ensure they meet expected standards.

Tagged:

Mark the connector to identify the type, source, and destination of the fiber.

c. Maintenance phase

Check connector cleanliness and integrity regularly. If any damage or contamination is found, the connector should be cleaned or replaced in time.

Use a dedicated optical fiber cleaning tool to regularly clean the connector pins and sleeves. Avoid using any cleaning methods that may cause scratches or damage.

d. Precautions

  • Be sure to follow the instructions and recommendations provided by the manufacturer throughout the installation process.

  • Keep the working area clean to prevent dust and impurities from entering the fiber end face.

  • Use appropriate personal protective equipment, such as glasses and gloves.

  • For unfamiliar operations, it is best to ask professional technicians to install.

7. Describes the maintenance and cleaning methods of optical fiber connectors

The maintenance and cleaning of optical fiber connectors is essential to ensure the normal operation and extended service life of optical fiber systems. Here are some basic steps and precautions for maintaining and cleaning fiber optic connectors compiled by INFINITECH:

Preparing cleaning tools

  • Powder-free rubber gloves or finger covers: prevent finger grease from contaminating the connector.

  • Lindless optical fiber cleaning cloth and cotton swab: used to wipe optical fiber connectors.

  • Anhydrous ethanol (isopropyl alcohol, IPA) : Used to clean fiber optic connectors with a purity of at least 99.5%.

  • Compressed air (no oil, no water) : used to remove dust.

  • Microscope: Used to check the cleaning effect.

清洁光纤连接器前需准备的工具

Cleaning procedure

Turn off related devices, such as optical amplifiers, to ensure that no optical signals pass through the fiber optic connector.

Before starting cleaning, wear powder-free rubber gloves or finger covers to avoid contaminating the connector with finger grease.

Use compressed air to blow the connector face to remove loose dust and impurities.

Gently wipe the connector face with a clean cotton swab soaked in anhydrous ethanol. Wipe from the center outward, avoiding back and forth to reduce the risk of scratches. Use a new cotton swab to clean several times until there are no visible contaminants on the swab.

Use a microscope to check that the connector ends are clean and repeat the cleaning steps if necessary.

Allow the connector to dry naturally or gently blow dry using compressed air.

For specific types of connectors, such as MPO connectors, specialized cleaners can be used for cleaning.

After cleaning is complete, put a dust-proof cap or protective cover on the connector end face immediately to prevent re-contamination.

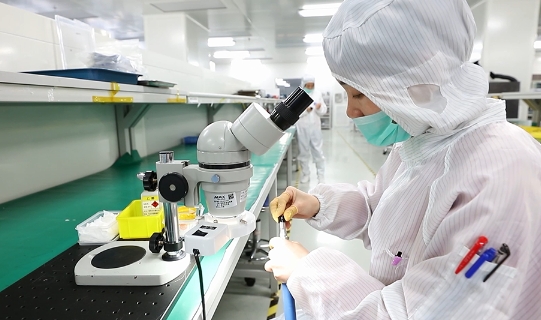

光纤连接器的维护与清洁

Matters needing attention

  • Use a brand new cleaning swab every time you clean to prevent cross-contamination.

  • When handling connectors, make sure your hands are clean and use clean cotton swabs to do so.

  • Avoid touching the tip of the cleaning swab with your fingers during operation to prevent sebum and dirt from being transferred to the connector surface.

  • Do not blow the connector surface with your mouth to prevent the introduction of new contaminants.

8. What are the loss factors of optical fiber connectors?

Defects such as scratches, pits, cracks, and particle contamination on the fiber end face directly affect connector performance, resulting in higher insertion loss (IL) and lower return loss (RL).

When the mode field diameters of different connected fibers do not match, especially when the mismatch reaches 20%, a loss of more than 0.2 dB may be generated. Therefore, the use of optical fibers with similar mode field diameters can reduce the connection loss.

When the axis of the fiber is not precisely aligned, even if the dislocation is only 1.2 μm, it can lead to a loss of up to 0.5 dB.

When the end of the fiber is tilted, even a tilt of 1° will result in a loss of about 0.2 dB. The selection of high-quality optical fiber cutting tools can improve the loss caused by axial tilt.

When the current, advance amount, discharge current and time of automatic welding machine are not set properly, the core deformation may be caused, and then the loss will be caused. When set properly, the loss caused by core deformation can be controlled below 0.02 dB.

Precise alignment of the connector core is essential to ensure accurate alignment between the two fibers. Positioning deviation will affect the coupling efficiency of light, thus increasing the loss.

When the fiber is broken but still able to guide light through, it can result in poor insertion loss or return loss. A poor connector may cause the end of the optical fiber to fail to accurately butt, thus preventing light from passing through.

Excessive bending of optical fibers can lead to a significant increase in optical loss, and may even cause fiber damage. It is recommended to keep the bending radius as large as possible, generally not more than 10 times the diameter of the jacket.

It includes scattering loss, absorption loss and loss caused by imperfect fiber structure. And micro bending loss, bending loss and connection loss. These losses are artificially caused during the laying of optical fibers, and can be avoided as far as possible by improving construction conditions and operating skills.

In order to reduce the impact of these loss factors, it is important to take appropriate precautions, such as using high-quality fibers and connectors, ensuring the cleanliness of the fiber end faces, accurately aligning the fiber axis, and using appropriate fiber cutting and welding techniques.

9. What are the advantages of optical fiber connectors compared with copper connectors?

Optical fiber connectors have a series of significant advantages over traditional copper wire connectors, which make optical fiber the technology of choice in modern communications and data transmission.

Fiber optic connectors support longer transmission distances because the optical signal attenuation in the fiber is much smaller than the electrical signal attenuation in the copper wire. For example, multimode fiber can support distances of hundreds of meters in Gigabit Ethernet, while single-mode fiber can support transmission distances of tens of kilometers, compared to copper wire connectors with shorter transmission distances at the same data rate.

Fiber optic connectors can support higher data transfer rates because fiber has lower signal attenuation and higher bandwidth capacity. Fiber optics can easily support data transfer rates of gigabits or more, while copper connectors are typically limited to a few hundred megabits.

Optical fiber is not affected by electromagnetic interference, which makes it ideal for use in environments where there is a lot of electromagnetic noise, such as industrial facilities or near high-voltage power lines. In contrast, copper wire connectors are susceptible to electromagnetic interference, leading to a decline in signal quality.

Optical fiber transmits optical signals rather than electrical signals, which means it is not easily eavesdropped or subject to electronic monitoring. Fiber optic connectors provide better signal confidentiality and are suitable for communication networks that require a high degree of security.

Optical fiber cables are smaller and lighter than copper cables of the same length, making them easier to install and manage. This feature is particularly important in applications that require high-density cabling.

Fiber optic connectors work well over a wide temperature range and are not susceptible to humidity. Fiber optic connectors are generally more durable and are able to maintain performance in harsh environments.

Fiber optic connectors are not affected by crosstalk and maintain signal purity even in high-density cabling environments. In contrast, copper wire connectors are susceptible to adjacent lines when heavily wired.

Comparison conclusion: Optical fiber connector is superior to copper wire connector in transmission distance, bandwidth, anti-interference, safety, volume, weight and environmental adaptability. These advantages make fiber optic connectors ideal for high-speed data transmission, telecommunications networks, data centers, and other applications that require high-performance communications.
